[PConline Review] Samsung held a conference on the theme of “Smart Life†in Shanghai on April 6, 2011, and released its new TV series featuring Smart TV. Among them, the D8000 series is the flagship model of this year. In addition to the main push function of the smart TV, the Samsung D8000 also has the advantages of ultra-narrow frame design and local light control technology. Now UA55D8000YJ flagship 3D TV has come to the PConline evaluation room, let us take a look at how this flagship product performance.
Product Model: Samsung UA55D8000YJ
Reference Price: 24,999 yuan
First, Samsung UA55D8000YJ first evaluation after the test
The D8000 series is available in two sizes, 55-inch LCD TVs and 64-inch plasma TVs. The model for this evaluation is its LCD TV - UA55D8000YJ. As this year's flagship product, the D8000 is equipped with a smart operating system "Smart Hub" platform customized by Samsung for its television, allowing users to use the TV experience. Various network digital resources. CMR clear motion processing rate 800Hz, 3D HyperReal Engine core image processing engine and local light control technology blessing also give the Samsung D8000 a certain quality assurance.
-------------------------------------------------- ---------------------------
Noun resolution:
Smart TV
Smart TV refers to a powerful hardware configuration, an open operating system, and an open application platform. It can realize natural human-computer interaction and multi-screen interaction, and brings a brand new user experience with a new smart interface and an innovative user interface. It can realize new functions or value-added services through self-installed application programs, and can be used to meet the diversified and personalized needs of TV products such as triple play access and 3C convergence.
Smart Application Center (Smart Hub)
Smart Hub is the core of Samsung Smart TV. It integrates web content, Apps applications, Allshare wireless shared content, TV channel listings, and more into one interface to help users find what they need. With the help of a search engine (Search All), users can search for the above content. After entering keywords, it will automatically search for local content on the TV. If you want more content, it will search the Internet further.
-------------------------------------------------- ---------------------------
Samsung UA55D8000YJ Pictures Reviews Forum Quotes Online shopping prices
Do not say to go to the C9000, Samsung D8000 compared to last year's C8000 flagship product, in most of the parameters are relatively close. However, the features of the Samsung D8000 this year are mainly smart TV features, as well as its extremely thin and extremely narrow industrial design. In the current high-end LCD TVs, the D8000's appearance is unique, very attractive.
Smart TV
Audio system Dolby sound, surround systemAs the flagship product of Samsung this year, the main competitors of the D8000 are high-end products such as the Sharp X50A and Sony HX920. Compared to these products, the Samsung D8000 has certain advantages in the smart TV field and appearance, and it is believed that it will win the favor of many people.
Smart TV smart TV function, picture quality performance, 3D effect is the focus of this evaluation, the author will evaluate 3D effect, point to point, gray level, color performance, dynamic contrast, high-definition video, USB playback, power consumption comparison, etc. , Evaluation of picture effects for reference only, let us immediately enter the evaluation article. >>
-------------------------------------------------- ---------------------------
Related Reading:
Smart life! 2011 Samsung appliance product line new product analysis
Family.pconline.com.cn/lcd/news/1104/2380613.html
Picture quality Sharp flagship 3D TV new 60X50A Reviews
Family.pconline.com.cn/lcd/reviews/1105/2407991.html
Kill 3D dead! LG does not flash full HD smart 3D TV evaluation
Family.pconline.com.cn/lcd/reviews/1105/2412613.html
The strongest quality in history! Sony 4x 3D TV HX920 Reviews
Family.pconline.com.cn/lcd/reviews/1105/2412128.html
-------------------------------------------------- ---------------------------
Second, Samsung UA55D8000YJ Appearance Appreciation
Samsung D8000's appearance is very special, in which the front of the ultra-narrow frame design is very eye-catching, the narrowest 5mm width of the border with a rare silver metal material appearance, so I feel like the screen is suspended in the air. This technology-rich design and ultra-narrow frame successfully create a kind of “immersive†TV viewing experience for users, which is quite Zen.
Samsung UA55D8000YJ Pictures Reviews Forum Quotes Online shopping prices
Samsung D8000 screen border is very narrow, so that there is no technical label on the border, the border uses a metal brushed material and the edge of the recess makes the look thinner. The overall shape of the D8000 is sharper and the corners are designed with a right angle, which is different from the rounded design of the sub-top model D7000. An infrared receiver is located in the lower right corner of the frame. When operating the remote control, the receiver flashes red.
Samsung D8000 border details
Samsung D8000 border details
Samsung's brand LOGO is distributed just below the screen. This LOGO will reveal a white LED backlight from behind.
Samsung D8000 Brand LOGO
Samsung D8000's base is also a four-claw design, the base is basically a plastic material, and there is some gap between the texture of the frame, the base shaft design can rotate the body a certain angle.
Samsung D8000 base details
The D8000 uses a side-mounted LED backlight with a body thickness of 29.7mm, which is already very thin compared to the same positioning of the flagship model. Due to its large size, the D8000 is a very thin board from the side. From this point of view, Samsung can at least have its own unique taste and solid strength in the design of the fuselage.
Samsung D8000 side view
From the back of the fuselage can be seen from the two parts of polished plastic and metal, I think the D8000 is the same with many ultra-thin products, the main parts of the fuselage should be fixed on the polished plastic frame, while the metal backplane is more Conducive to heat dissipation of the body.
Samsung D8000 back of the fuselage
It can be seen from the label that the D8000 is made in China and has a rated power of 160W.
Samsung D8000 Technology Tag
Samsung D8000 interface settings are more reasonable, which because the body is more compact, so the chromatic aberration and the AV terminal's complete interface is omitted, instead using the adapter cable to achieve, the interface is mainly distributed in the side and bottom interface area. From the D8000's interface, it can be seen that the HDMI interface has gradually replaced the analog signal interface such as color difference, and the high-end models have fewer and fewer analog terminal interfaces. The side interface area consists of three USB ports, one optical fiber output port, four HDMI ports, color difference interface, and 3.5mm audio interface.
Samsung D8000 Side Interface Area
The lower interface area is VGA interface, TV antenna interface, AV terminal conversion interface and audio output interface from the left.
Samsung D8000 under the interface area
The Samsung D8000's remote controller is relatively common, similar to the remote controllers of other TV monitor products, and its case is made of plastic material. Pressing the button type will cause the orange backlight to light up.
Samsung D8000 remote control details
The OSD button is distributed below the right side of the fuselage and is a press-type operation. However, the key path is short. You can operate it by tapping it. When you touch the button area, it will pop up the specific distribution of the buttons on the screen, thus eliminating the need for The trouble of looking at the physical key information is very human.
Samsung D8000 OSD keypad
Samsung D8000 OSD keypad touch effect
Samsung D8000's appearance can be said to be a major selling point, which ultra-narrow frame stunning, while also maintaining a slim body 29.7mm, which makes the Samsung D8000 like an industrial design from the future, and At the same time as the body of the compressor, the D8000 retains most of the interfaces, but only connects analog terminals such as chromatic aberrations by means of a conversion interface. >>
Third, Samsung UA55D8000YJ menu layout
Samsung D8000 menu is more traditional, press the project button will pop up settings screen, the menu design is simple and beautiful, each option is in the upper right corner with map instructions, in the operation of a smooth sliding effect. The settings interface is image, audio, channel, network, system, support, and several options from top to bottom.
Samsung D8000 menu layout
Samsung D8000 menu layout
The Samsung D8000 has a rich set of options for adjusting backlight, colorimetry, sharpness, and more in image settings.
Samsung D8000 image setting options
In the advanced settings of the image, there are more professional options such as black tone, dynamic contrast, gamma, etc., and the quality adjustment options are more abundant.
Samsung D8000 Image Advanced Settings Options
Among them, the "black tone" image adjustment option has a certain increase in the dark part of the performance, there are dark, dark, the darkest degree of choice, the general choice is darker, the darkest will lose a certain dark details.
Black tone option off
Black tone options open
There are skin tone adjustment options in the advanced image settings, there are +15 to -15 thirty files adjustable, I can see that adjustment of the transition will make the girls face color is not natural, but if the adjustment is appropriate will make the portrait display more favorable to visual.
Samsung D8000 Skin Color Options -15 Hours Picture
Samsung D8000 skin color options + 15 hours screen
Samsung D8000 also has a built-in TV manual, almost all of which are included, as well as picture display, which is more practical.
Samsung D8000 manual interface
The Samsung D8000 provides four image modes: standard, dynamic, natural, and movie. The author chose three modes: standard, dynamic, and movie. By comparing the following figure, we can see that the dynamic mode has the highest contrast and warm colors, while the movie mode has the darkest backlight and the color is blue.
Samsung D8000 image mode standard screen
Image mode dynamic (left) image mode movie (right)
Fourth, Samsung UA55D8000YJ point to point test
During the peer-to-peer test, the PC used by the author was the Lenovo ThinkPad SL400 series, and the signal was input to the TV through the HDMI interface. First set the resolution of the PC to 1920×1080, the refresh rate is 60Hz, and then set the D8000 on the menu to point-to-point mode. The D8000 full HD point-to-point is presented to the author. From the point of view of the actual display point of view, the Samsung D8000 text strokes clear, full HD point-to-point effect is satisfactory.
Samsung D8000 Full HD Point-to-Point Testing
In the Monoscope full HD 1080p signal test, Samsung D8000 in the circle, oblique lines, horizontal lines, vertical lines are very clear, in the performance of 1080p lines, 4 line adhesion phenomenon is relatively minor.
Samsung D8000 Full HD Point-to-Point Testing
From the pixel panel close-up view of the LCD panel, it can be seen that the sub-pixel arrangement of the Samsung D8000's LCD panel is similar to that of the HX920 panel. This panel is definitely Samsung's own, but the exact place where the official production is not explained.
Samsung D8000 LCD panel close up
Samsung D8000's menu is simple and beautiful, intuitive and rapid operation process, and has a very rich image adjustment capabilities, which in the flagship TV products can also be considered outstanding. In point-to-point tests, the D8000 can also achieve full HD point-to-point, and the screen is superior in this respect. >>
V. Samsung UA55D8000YJ Smart TV Smart TV Function Trial 1
In this year's Samsung product line, Smart TV smart TV is one of the most high-end categories, including D8000, D7000, D6600, D6400 several models. Smart TV is actually a TV product equipped with Samsung's "Smart Hub" operating platform tailored for TV products. Smart Hub has an application store, various SNS product clients, Internet browsers and global search. Other functions, such as Samsung's own production of these programs, and more programs can be downloaded from the online store.
Samsung D8000 smart TV function
By pressing the “Smart†button of the remote control, you can enter the “Smart Hub†interface of the Samsung D8000. After turning on the power for the first time, you need to wait a little time, but after that, there is no such problem. This explains The Smart Hub system and hardware operate independently, just as if a high-definition player had been placed in the TV. However, Samsung did not explicitly specify what kind of hardware configuration was adopted, which is quite different from its competition in the high-power hardware configuration in the Android mobile phone field.
Samsung D8000 Smart Application Center Interface
The desktop of the "Smart Hub" platform consists of several large panels. The upper left corner is the picture-in-picture screen. It is under the Smart Hub interface that you can see the TV screen at the same time; the top of the middle is the global search function; For the application store; below the store is the Samsung recommended program, updated regularly by Samsung; the bottom is a list of all programs, you can freely change the location, uninstall and into the folder. Smart Hub This simple platform can be said to be small, fully-equipped, and most functions can be easily operated and implemented.
Samsung D8000 Smart Application Center Adjustment Interface
1, Internet browser
The Samsung D8000 has both wired and wireless Wifi connection methods. It provides a simple network connection process in the setup. You can complete the connection by entering the password.
Samsung D8000 Network Settings Interface
I used the Pacific Internet as a test page and found that the D8000 web browser reads web pages quickly and is compatible with Flash. The bottom of the browser has detailed key shortcuts prompts, to some extent make up for the weaknesses that are not easy to control with the keyboard, and when using the browser, the confirmation key in the TV remote control can be moved by touching the cursor, the principle and optical mouse similar.
Samsung D8000 Internet Browser Interface
The Samsung D8000 browser provides eight kinds of zooming methods, which is very useful for TV browsing web pages.
Samsung D8000 Internet Browser Interface
Samsung D8000 Internet Browser Interface
When browsing the webpage, pressing the tool key can call up the tool menu, thereby implementing operations such as adding a bookmark, inputting a website, switching a window, etc., and the menu setting is very intuitive, thereby making it easy for the user to use. This browser also supports multi-window browsing, and the switching process is also very convenient.
Samsung D8000 Internet Browser Interface
Samsung D8000 Internet Browser Interface
2, digital content client
Samsung D8000 has built-in clients such as Sina Weibo, Dianping reviews, Douban movies, Sina News, etc., and I believe that many people have the same software as the author in the mobile phone, usually from time to time to take it out to see. And now when watching TV, you can always open the software to see the latest information, thus eliminating the hassle of finding a mobile phone or turning on a computer. When logging in to a client that requires a password, such as Sina Weibo and Kaixin.com, it is necessary to first register a user name in the user management and then associate the client information before successfully logging in.
Samsung D8000 user login interface
After logging in to Sina Weibo, you can see several important sections of Weibo. The response during the operation is very quick and smooth. It can be seen that Samsung has done a good job in optimizing the program. Through the keyboard shortcuts, each microblog can also be commented on or forwarded, and the input method is similar to the T9 input method of the keyboard mobile phone era, which will be described in detail below.
Samsung D8000 Sina Weibo Interface
Samsung D8000 Sina Weibo Interface
The public comment client is also more comprehensive, merchants, rankings, coupons and other common sectors can browse.
Samsung D8000 public comment interface
Samsung D8000 public comment interface
I believe that many people will go to the watercress to read the film review, thus deciding which movie to go to, and now the D8000 can also be directly browsed and obtained, the information is completely synchronized with the site, but this client user can not comment .
Samsung D8000 Douban Movie Interface
Samsung D8000 Douban Movie Interface
The built-in Sina News client is beautiful and concise, and the contents of the news can be easily selected through the remote control. The font of the news body is larger and suitable for viewing at a distance.
Samsung D8000 Sina News Interface
Samsung D8000 Sina News Interface
The Samsung D8000's Internet browser is easy to operate and has good compatibility with web pages. At the same time, various digital content user interfaces are also very friendly and practical. >>
V. Samsung UA55D8000YJ Smart TV Smart TV Function Test 2
3, Baidu map client
The D8000 also has a built-in Baidu map client, which allows quick and easy operation via the remote control's color buttons.
Samsung D8000 Baidu Map Interface
When searching for place names, English or Chinese pinyin input method can be selected. When typing, you can follow the on-screen prompts to perform typing similar to the T9 input method. The input process is relatively simple, but the remote controller is infrared, and sometimes the signal range is too narrow. The situation of the word.
Samsung D8000 Baidu Map Interface
The content of the client is almost the same as that on the web page, and similarly, it is also possible to quickly select nearby locations such as ATMs and banks.
Samsung D8000 Baidu Map Interface
Samsung D8000 Baidu Map Interface
4, application store
Since the rise of the Apple model, many companies have wanted to copy this model. Although Samsung's Smart TV application store is not as comprehensive, it can be seen as a prototype of the Apple model. All programs in the Smart Hub are Samsung's own productions, and there is also an app store similar to the APP Store. It can be seen that most of the current software is free, but it's hard to say in the future. Samsung will not further develop this architecture based on market performance.
Samsung D8000 App Store

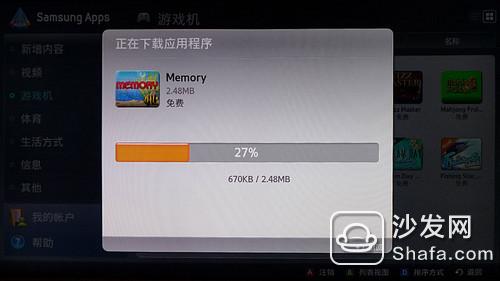

After clicking on the program you want to install, you can see the software information, so as to choose whether to download, and the interface is more beautiful.
Samsung D8000 App Store
Samsung D8000 App Store
5, game features
The D8000's smart TV function also has game software, but it is a relatively simple puzzle game. You can play it with the remote navigation key, and it's not bad when you are bored.
Samsung D8000 game screen
Samsung D8000 game screen
After trying Samsung's "Smart Hub" platform, the author thinks that this is the most mature and perfect platform in the current television products. Although the remote control signal receiving range will be too narrow when inputting text, it is In most software applications, the author feels that the software runs smoothly and exquisitely, and that because of the application store, software resources can also be continuously updated and upgraded. >>
Sixth, Samsung UA55D8000YJ 3D principle analysis
At present, there are many ways to realize 3D video viewing, which can be mainly classified into naked-eye type and glasses type, among which the naked-eye type raster display method and holographic display method are difficult to achieve, and it is expensive and hard to popularize. Spectacle type is divided into color separation method, light division method, time division method and other technologies, color separation method is the earliest and cheapest 3D technology, but easy to cause color cast, 3D effect is also the worst; light division method that is high school textbook introduction The polarizing 3D technology is better than the color separation method, but the screen is difficult to achieve full HD resolution, brightness is relatively low; time division method is also known as active shutter 3D technology, most current first-line TV manufacturers use this technology, have no effect The advantage of the picture effect is that the glasses are heavy and expensive and some of the pictures have a flickering effect.
Samsung D8000 3D principle analysis
Samsung D8000 uses the active shutter 3D technology, the principle is this: the screen will be displayed to the left eye to see the screen, then the glasses will cover your right eye simultaneously, a bit like pirates wear eye masks. Then, the screen will quickly switch to the right eye. At this time, the glasses will turn to cover your left eye and make sure that the picture you see is correct. This process alternated very quickly, reaching 120 times per second, so it was impossible for the human eye to see this shift.
Samsung D8000 3D principle analysis
Samsung D8000 with the glasses in appearance is relatively simple, the material is also more general plastic polishing, but the mirror legs using ordinary glasses design is relatively light.
Samsung D8000 3D glasses details
Compared with the polarized 3D technology, most of the foreign brands currently use active shutter 3D technology. This technology can guarantee the sharpness of the picture while realizing the 3D picture, and Samsung D8000 improves the crosstalk and flicker phenomenon through the technical improvement. >>
Seven, Samsung UA55D8000YJ 3D screen effect
Samsung's Smart TV product line has all 3D features in its product line, which shows that 3D functions are beginning to become more and more popular. Xiao Bian will now perform 2D and 3D screen captures of similar clips in playback to compare the differences between 2D and 3D screens, especially the two major differences between depth of field and brightness.
Samsung D8000 3D effect test (naked eye shot)
Samsung D8000 3D effect test
Because the 3D image is formed by the difference in the distance between the left and right eyes, the blurry ghost image will only be seen when the 3D image is viewed without glasses. The 3D degree created by different scenes is also different, so the ghost image may not be correct. It will be very obvious.
Samsung D8000 3D effect test (naked eye shot)
Samsung D8000 3D effect test
Due to the active shutter 3D technology, brightness decreases when viewing 3D. However, on the current trial, the brightness does not bring about visual problems. On the contrary, when you take off the glasses, you will feel that the screen is too white.
Samsung D8000 3D effect test (naked eye shot)
Samsung D8000 3D effect test
In the active shutter 3D technology, the phenomenon of flicker and crosstalk has been a major technical problem. However, the Samsung D8000 is equipped with a local light control technology, CMR800Hz speed and other technologies, there are many advantages in the reduction of image retention, so the phenomenon of flicker and crosstalk is not obvious.
Samsung D8000 3D effect test (naked eye shot)
Samsung D8000 3D effect test
Samsung D8000 also has a 2D to 3D function, you can use the input source to select 3D conversion methods, such as ordinary 2D to 3D, left and right and up and down. The 3D conversion function of the Samsung D8000 is more general, and the stereoscopic feeling is not very strong when watching 3D images, but as a supplement to 3D resources, the 2D to 3D function still has a certain degree of practicality.
Samsung D8000 2D to 3D interface
Samsung D8000 2D to 3D screen (naked eye shot)
Samsung D8000 2D to 3D screen
In the active shutter 3D technology, the relationship between the angle of the glasses and the screen is very important. Therefore, when viewing the 3D movie, it is necessary to maintain a substantially horizontal angle to view a clear and bright 3D image. The Samsung D8000's 3D glasses also lose brightness when they are deflected by a certain angle, and they turn completely black when they reach 90 degrees with the TV.
Samsung D8000 3D glasses angle test
The 3D playback function of the Samsung D8000 is still OK. When viewing 3D sources, the three-dimensional appearance is obvious. However, there are still paper-like three-dimensional phenomena. However, flicker and crosstalk are not serious during the viewing process. >>
Eight, Samsung UA55D8000YJ grayscale comparison test
Since the screen shot has undergone the necessary software processing and is affected by the actual effect of the netizens' display, the screen displayed on the screen will eventually differ from the actual effect of the TV. Therefore, the actual effect is based on the author's text description. I use the Hi-Definition Reference Disc test disc. The camera was equipped with a Canon 50D and the lens used a Canon EF-S 17-85mm f/4-5.6 IS.
The first test is a 15-gradient grayscale test. From the actual screen, the Samsung D8000's grayscale performance is excellent, and can be clearly distinguished between 0 and 1 in the darkest part and 14 and 15 in the brightest part.
Samsung D800015 gradient gray test
In the black gray-scale tolerance test, the Samsung D8000 also performed very well. The fine lines in the dark parts of the charcoal were clearly visible, and the details of the highlights were also clearly shown.
Samsung D8000 charcoal black test
Nine, Samsung UA55D8000YJ color performance test
First, Xiaobian used DisplayX to perform full-gamut color transition tests on the Samsung D8000. As can be seen from the figure below, the Samsung D8000 is still outstanding in the performance of the color transition, most of the color range transitions are very natural, but the transition between yellow and green, pink and red, some blunt.
Samsung D8000 full color domain color transition test
In the reality of the rotating cloth image, it can be seen that the D8000's color reproduction is cool, the color display is still relatively bright, and the edges are sharp and sharp.
Samsung D8000 color test
The Samsung D8000 shows the blue coil in the figure more accurately, and the pink display is also somewhat cooler, and the image shows clear and sharp.
Samsung D8000 color test
Samsung D8000 color test
In contrast with black and white, the Samsung D8000 restores the silk coat of women in black. It does not appear that the dark part is pasted together, and the red color is also more accurate.
Samsung D8000 color test
After swapping the positions, the two men's clothes are contrasted against each other in the opposite color background, and the interpretation of the details of the hair is also very good.
Samsung D8000 color test
In this picture, the girl's facial color is colder, and the color of the clothes is somewhat glamorous, and the dark red of the rose is better.
Samsung D8000 color test
From the display of this picture of the Tokyo Tower, the D8000's restoration of the details of the shadows is good, and the highlight color of the tower is also relatively correct.
Samsung D8000 color test
Although the Samsung D8000 uses a side-mounted LED backlight, it is superior in contrast performance, and it is also more accurate in restoring colors. It is only somewhat cool in the restoration of some colors. It is believed that there will be some improvement in image adjustment. >>
Ten, Samsung UA55D8000YJ dynamic screen test
In this part of the test, you need to pay attention to what the netizens are paying attention to is the car behind the windows of the fast-moving train and the body plates of the car. The author used the same ISO and aperture during the shooting process. The parameters are ISO-400 and F4.5. The exposure time is 1/100 seconds. Samsung D8000 uses the CMR800Hz double speed technology, local light control technology, these technologies can effectively eliminate image sticking, in the menu also have Motion plus image adjustment options, adjust to smooth can also improve the image afterimage problem.
Through the window of a train running at high speed, the edges of the building's background can be seen clearly and there is no ghosting phenomenon. This shows that the Samsung D8000 performed well when displaying high-speed images.
Samsung D8000 dynamic screen test
In the high-definition video of a section of vehicles that is played below, we need to observe the car's license plate and the outline of the car body. The Samsung D8000's license plate display of the moving vehicle is also very clear, and the phenomenon of ghosting is not obvious.
Samsung D8000 dynamic screen test
Samsung D8000 dynamic screen test
Samsung D8000 has a good performance on high-speed dynamic images, image afterimage phenomenon is not serious.
Eleventh, Samsung UA55D8000YJ power comparison test
Samsung D8000, rated power consumption of 160w, as a 55-inch LCD TV is relatively power saving, and from the author's evaluation experience, the actual power consumption is close to the rated power consumption. The author uses the instantaneous power consumption test method, which is to measure the power consumption values ​​of the six screens of red, green, blue, white, black and color transitions in the standard mode.
Samsung D8000 power comparison test
From the results of actual testing, the Samsung D8000 has the lowest power consumption of 44.74w for the black image in the standard image mode, and about 138w for the green and blue, while the power consumption of the other brighter images is also maintained at 138w. about. It can be said that the D8000's power consumption is good, but the reason for the slightly higher level compared to some models should be the reason why the initial backlight brightness is too high.
Due to the use of CMR800Hz double speed technology, local control light technology and other technologies, the Samsung D8000 performed well when displaying high-speed images, and the image sticking phenomenon was not serious. In terms of power consumption, the D8000 is basically the same as similar products. >>
Twelve, Samsung UA55D8000YJ HD video test
In high-definition video playback, I chose to test the two Blu-ray movies "Dolby - the Sound of High Definition" and "Avatar." In the Blu-ray disc of "Dolby - the sound of high definition", there are many fragments of Blu-ray movies. In the video playback, C80000 is better for high-definition images, but the color display is a little cooler, but there is no such thing as a screen shot. The actual perception is actually quite good.
Samsung D8000 HD video test
Samsung D8000 HD video test
In the "Home" movie, there are a lot of big scenes. In the actual playback, the D8000 is more accurate in color reproduction, but it can be seen that Samsung's image processing is more biased and sharp, and the noise phenomenon is a bit serious in the playback of the movie.
Samsung D8000 HD video test
Samsung D8000 HD video test
It can be seen by playing high-definition video, Samsung D8000 playback of high-definition video is relatively good, the image display is clear and sharp, but there are noisy phenomenon, D8000 slightly colder on the color reproduction, in the display of some high-speed images can not be opened too Motion plus High to avoid over processing of images. >>
Thirteen, Samsung UA55D8000YJ streaming media playback test
Samsung D8000's streaming media playback function is actually part of the "Smart Hub". After inserting the USB storage device, the TV will automatically pop up the USB device insertion reminder, then you can directly click to enter the media player interface. Samsung D8000 can play media in images, music, and video.
Samsung D8000 USB Storage Device Popup Interface
Samsung D8000 supports various file formats such as RMVB, AVI, etc. in video playback. When selecting files, there is no stalling phenomenon, and the selection of files is very fast.
Samsung D8000 video file browsing interface
In practical tests, almost all Full HD resolution videos can be played, including WMV, RMVB, AVI, MKV, etc., video playback is smooth and there is a shortcut menu to operate quickly, but there are still noises during playback. phenomenon.
Samsung D8000 video file playback screen
Samsung D8000 video file playback screen
In terms of music playback, the Samsung D8000 can also quickly select, and the playback screen is more beautiful.
Samsung D8000 music player interface
Samsung D8000 music player interface
In image playback, Samsung also supports JPG format images. Pictures can be zoomed, slide show, and other operations during browsing.
Samsung D8000 image browsing interface
Samsung D8000's picture shows a bright, clear image.
Samsung D8000 picture display screen
Samsung D8000 picture display screen
In terms of streaming media, the Samsung D8000 is very good. It has good compatibility with most formats and resolutions of video files. What's more important is the good handling of the user interface. As a first-tier electronics manufacturer, Samsung is The user interaction interface has accumulated rich experience and I believe this is also the advantage of the D8000. It can be said that the Samsung D8000's streaming media playback function can completely replace most of the high-definition players on the market. >>
Fourteen, Samsung UA55D8000YJ evaluation room summary
As the flagship model of the Samsung brand this year, the D8000 has an ultra-thin and light design, as well as a CMR clear motion processing rate of 800Hz, a 3D HyperReal Engine core image processing engine and local light control technology. However, even more critical is that Samsung has finally set foot in the smart TV field and become the first company in the first-line brand to produce smart TV products. It is believed that the TV industry will not only focus on the field of image perception, but will pay more attention to the provision of content. This will also bring greater pressure on domestic brands.
Samsung UA55D8000YJ Pictures Reviews Forum Quotes Online shopping prices
Through the detailed evaluation of the above multiple projects, PConline evaluation room summarizes the evaluation performance of Samsung D8000 as follows:
Edit Comment: Samsung D8000 first has a very thin design, this design can give users a more focused picture experience. At the same time, although the D8000's Smart TV function is available soon, it is a leader in the TV field in terms of platform stability, user experience and practicality. In terms of image quality performance, it is equipped with a CMR clear motion processing rate of 800Hz, 3D HyperReal Engine core image processing engine and local light control technology, so it also has a relatively good picture performance, and also performed well in 3D. [Back to Channel Home]
APM satisfies high voltage DC Power Supply application demands, allowing the SP series to cover a voltage range from 0V to 800V. It delivers advanced features. The compact 2U high 19inch wide adjustable dc power supply were designed to meet the needs of both system integrator and bench top users.
Some features of the switch mode power supply as below:
- Ultrafast respond time and high efficiency
- Accurate voltage and current measurement capability
- Constant Power and wide range of voltage and current output
- Equips with LIST waveform editing function
- Compliant with SCPI communication protocol
- Support RS232/RS485/LAN/USB (standard) ,GPIB (optional)
- Built-in standard automobile electrical testing curves
- Full protection: OVP/OCP/OPP/OTP/SCP
- Voltage drop compensation by remote sense line.
- Have obtained CE,UL,CSA,FCC.ROHS
800V DC Power Supply,Smps Power Supply,Variable Voltage Power Supply,DC Adapter Power Supply
APM Technologies Ltd , https://www.apmpowersupply.com
